| Tên thương hiệu: | Long |
| Số mô hình: | tất cả các kích thước |
| MOQ: | 2m |
| giá bán: | Can discussible |
| Điều khoản thanh toán: | T/T, D/P, D/A, L/C, Liên minh phương Tây, Moneygram |
| Khả năng cung cấp: | 2000meters mỗi ngày |

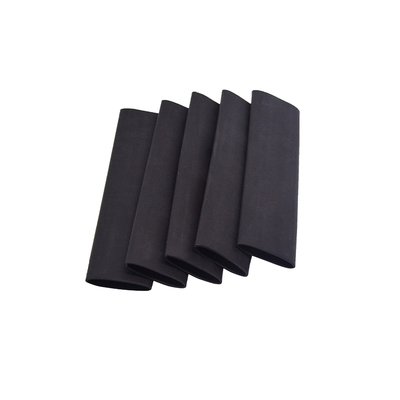

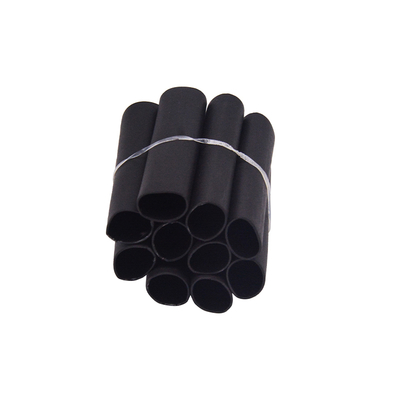

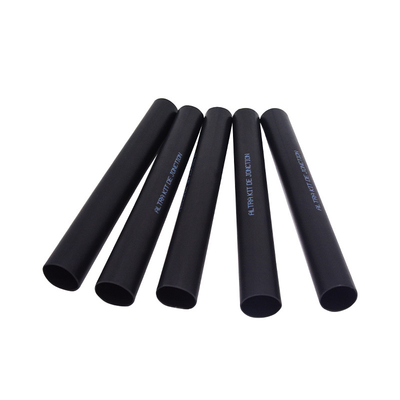

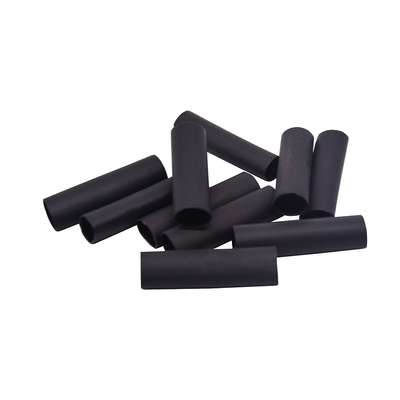

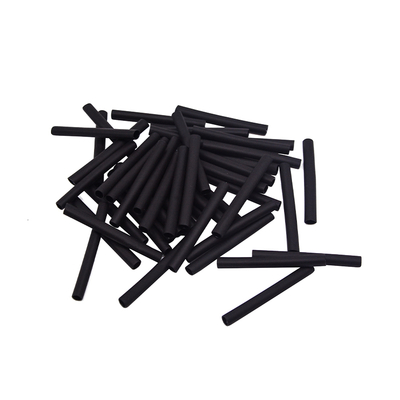

Black Shrink Tubing Black Single Wall Dual Wall Heat Shrink Tube
Thin wall fluoroelastomer heat shrink tubing suitable for use in electronic systems and components in automotive, military/ aerospace and industrial applications requiring outstanding heat and fluid resistance.
2:1 without glue Features
● 2:1 shrink ratio
● High withstand to corrosive fluids in extreme temperatures
● Flame retardant
● Very flexible
● Easy to stamped
● Continuous operating temperature:-55℃- 200℃
● Shrink temperature:175℃
● Meets 23053/ 13
3:1 with glue Features
● 3:1 shrink ratio
● Low longitudinal shrinkage
● Flame retardant (out jacket only)
● Super sealing against water, moisture or other contaminates
● Continuous operating temperature:-45℃- 125℃
● Shrink Temperature:125℃
2:1 without glue Dimensions
| Size | Expanded | Recovered |
Standard Package M/Spool |
Round/Flat |
||
| Inch | mm | Internal Diameter (mm) | Internal Diameter (mm) | Wall Thickness (mm) | ||
| 1/8 | 3.2 | 3.2 | 1.6 | 0.75±0.20 | 200 | Round |
| 3/16 | 4.8 | 4.8 | 2.4 | 0.89±0.20 | 100 | Round |
| 1/4 | 6.4 | 6.4 | 3.2 | 0.89±0.20 | 100 | Round |
| 3/8 | 9.5 | 9.5 | 4.8 | 0.89±0.20 | 50 | Round |
| 1/ 2 | 12.7 | 12.7 | 6.4 | 0.89±0.20 | 25 | Round |
| 3/4 | 19.0 | 19.0 | 9.5 | 1.07±0.30 | 25 | Round |
| 1 | 25.4 | 25.4 | 12.7 | 1.25±0.30 | 25 | Round |
| 1-1/ 2 | 38.1 | 38.1 | 19.0 | 1.40±0.30 | 25 | Round |
| 2 | 50.8 | 51.0 | 25.4 | 1.65±0.30 | 25 | Round |
| Property | Test Method | Stantard | Typical Performance |
| Tensile Strengtn(MPa) | ASTM D2671 | ≥8.5 | 10.0 |
| Elongation(%) | ASTM D2671 | ≥250 | 300 |
| Tensile Strengtn after aging (MPa) | UL224 158℃X168hr | ≥7.3 | 8.5 |
| Elongation after aging(%) | UL224 158℃X168hr | ≥200 | 250 |
| Dieletric strength(kv/mm) | IEC243 | ≥15 | 17.5 |
| Volume resistivity(Ω.cm) | ASTM D876 | ≥1X109 | 2.5X109 |
| Flammability | VW-1 | Pass | Pass |
Changzhou Longchuang Insulating Material Co., Ltd is a high-tech enterprise with headquarter in Changzhou, China. Founded in 2010,The Long brand has always been a guarantee for the supply of heat shrink tubing products and services. From product design and raw materials purchasing to final inspection and testing, Longchuang has a perfect quality assurance program covering the entire production process. So far, we have been successfully certified by ISO 9001, ISO 14001, ISO/TS 16949, UL, CSA, 3C, etc.
At Longchuang, we know this can be done.
FAQ
Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.
Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”
Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).
Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.
Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
