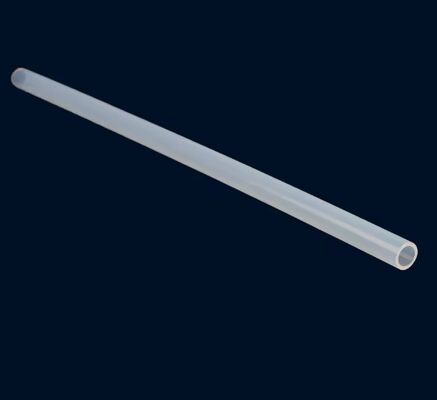

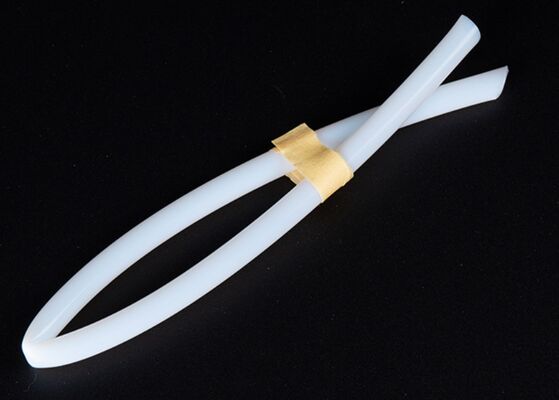

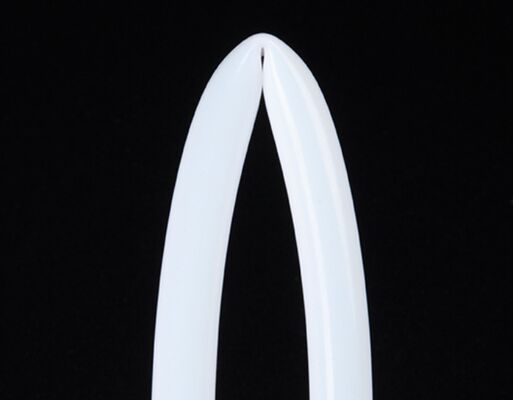

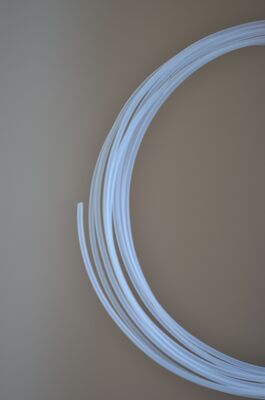

Transparent and White Choice Ultra-Thin PTFE Heat Shrink Tubing 1.5mm Engineered For Performance

Transparent and White Choice Ultra-Thin PTFE Heat Shrink Tubing 1.5mm Engineered For Performance

Tên thương hiệu: NONE
Số mô hình: 1,5mm
MOQ: 500
giá bán: negotiable
Điều khoản thanh toán: TT In Advance
Khả năng cung cấp: 200000m/day
Thông tin chi tiết
Chứng nhận:
ISO9001
Nguồn điện:
+3,3V
Mở rộng:
-65 đến +200°C
Màu sắc:
Trắng và trong
Chứng chỉ:
Cấp thực phẩm/RoHS/S GS
Độ bền điện môi:
22-24 Kv/mm
Thích hợp:
MK1100 / MK1500 / MK2100 / MK2500
Ứng dụng:
Công cụ làm sổ lưu niệm Công cụ tạo nếp gấp
Packaging Details:
Carton
Supply Ability:
200000m/day
Làm nổi bật:

Ultra-Thin PTFE heat shrink tubing

,

Transparent PTFE tubing for performance

,

White PTFE heat shrink 1.5mm

Mô tả sản phẩm

Product Description:

Our Ultra-Thin Wall PTFE Heat Shrink Tubing is engineered for applications where space is limited but extreme performance is required. With a pre-shrink inner diameter of 1.5mm and an ultra-thin wall thickness of just 0.02mm, this tubing provides a lightweight, non-stick insulation layer that can withstand the harshest chemical and thermal environments.



Key Specifications:

  • Material: Premium PTFE (Polytetrafluoroethylene)
  • Recoverable ID (Pre-shrink): 1.5 ± 0.2 mm
  • Recovered ID (Post-shrink): ≤ 0.9 mm
  • Wall Thickness: 0.02 ± 0.05 mm (Ultra-Thin)
  • Shrink Ratio: Approx. 1.7:1 (Based on ID change)
  • Shrink Temperature: 327°C (620°F)
  • Operating Temperature: -70°C to 260°C (-94°F to 500°F)
  • Standard Packaging: 200 Meters/Roll

Features:

  • Ultra-Thin Profile: At only 0.02mm, it adds minimal bulk to fine wires and connectors.
  • Chemical Resistance: Inert to almost all chemicals, solvents, and acids.
  • Non-Stick Surface: Prevents adhesion of dust, dirt, or sticky substances.
  • High Purity: Ideal for medical, food processing, and cleanroom environments.
  • Flame Retardant: Self-extinguishing (UL VW-1 Rated).


This PTFE product is a high-performance plastic known for its excellent non-stick coatings, making it ideal for various applications. The use of virgin PTFE ensures durability and superior non-stick coatings properties, suitable for continuous operating conditions

Applications:

  • Insulation for fine gauge wires and micro-components.
  • Medical devices and sensor protection.
  • Aerospace and military electronics.
  • High-temperature wire harnessing where space is critical.
